To accurately locate points on a construction site, you'll need the right tools and careful attention to detail. Start with a quality transit level or total station for establishing reference points, then use steel measuring tapes and GPS technology for precise measurements. Follow your construction plans closely, paying special attention to coordinate systems and elevation marks. Double-check your work through triangulation methods, and always document point locations thoroughly. Understanding these fundamentals will reveal even greater precision in your site layout work.
Essential Tools for Site Layout and Point Location
When you're starting a construction project, having the right tools for site layout makes all the difference in achieving precise point locations.
You'll need a quality transit level or theodolite, steel measuring tape, plumb bobs, and wooden stakes to establish your basic reference points. Modern GPS Technology has revolutionized site layout, allowing you to pinpoint locations with incredible accuracy.
Don't forget to include essential marking tools like spray paint, flagging tape, and permanent markers to identify your points clearly.
A Laser Distance meter can save you countless hours when measuring between points, especially in challenging terrain. For maximum accuracy, you'll also want a builder's level, string lines, and a reliable construction calculator to double-check your measurements.
Ready to start laying out your site with confidence?
Understanding Construction Plans and Coordinates
Before you can start marking points on your construction site, you'll need to thoroughly understand your construction plans and coordinate system.
Take time to familiarize yourself with common construction symbols and notations, as they'll guide your entire layout process.
Most modern construction plans use coordinate systems based on a fixed reference point, often marked as 0,0 on your site plan.
You'll find these coordinates listed as northing and easting values, which tell you exactly where each point should be located.
When reading your plans, pay special attention to elevation marks, property lines, and setback requirements.
Want to verify you're reading the coordinates correctly?
Double-check your reference point and confirm that you're using the same coordinate system specified in your plans.
This simple step can save hours of rework!

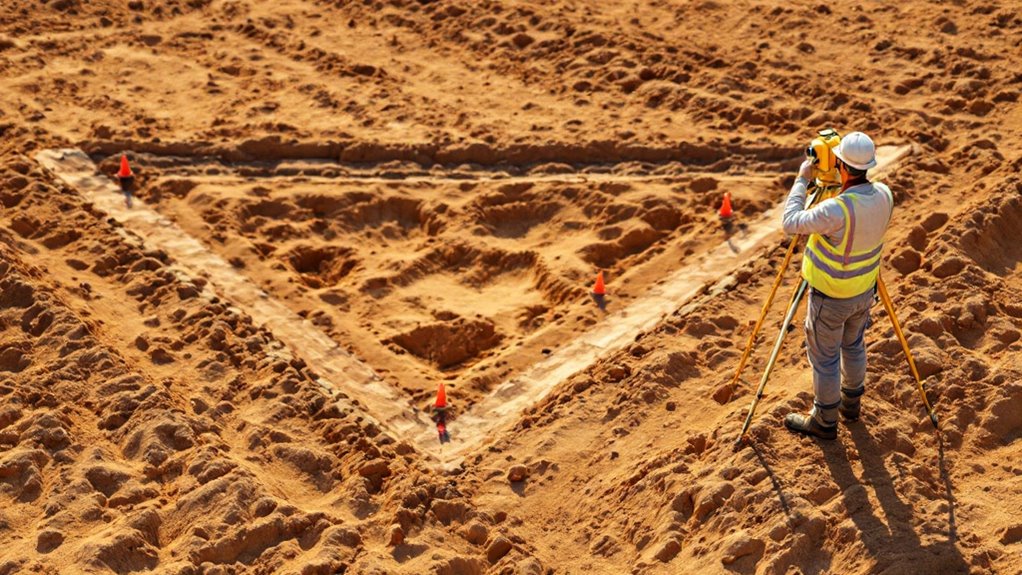

Basic Principles of Site Triangulation
Site triangulation builds directly on your understanding of construction coordinates. When you're locating points on a construction site, you'll need to use precise measuring techniques to establish accurate positions from known reference points.
Think of it as creating invisible triangles across your site!
Visual triangulation is like sketching with measurements, drawing unseen geometric shapes to map out your construction site with precision.
- Start with two known fixed points, like property corners or survey markers.
- Measure the distance from each fixed point to your target location.
- Use these measurements to create intersecting arcs that pinpoint your target.
- Double-check your triangulation methods by measuring from a third reference point.
Once you've mastered basic triangulation, you'll find it's an invaluable skill for layout work.
Remember, accuracy is essential here – even small measurement errors can compound into significant problems.
Ready to put these principles into practice on your next project?
Using Total Stations and Digital Equipment
Although traditional triangulation methods remain valuable, modern total stations and digital equipment have revolutionized how we locate points on construction sites.
You'll find that today's total station features include built-in computers, automatic angle measurements, and laser distance capabilities that make point location incredibly precise.
Before you begin using digital equipment, proper calibration is essential.
You'll want to set up your total station on a known point, level it carefully, and input the correct coordinates.
Once calibrated, you can locate points with accuracy down to millimeters! The equipment will guide you with clear digital readouts and even store your measurements for later use.
Ready to upgrade your site layout skills?
Start by practicing with the basic total station features, then gradually work your way up to more advanced applications.
Manual Point Location Techniques
When you're working without digital equipment, manual point location techniques remain essential skills for any construction professional. Using basic tools like a plumb bob and chalk line, you'll find these time-tested methods are reliable and cost-effective for most residential projects.
Here are four fundamental manual techniques you can use:
- Triangulation from known reference points using measuring tapes
- Running perpendicular lines with a 3-4-5 triangle method
- Setting control points with a plumb bob and string lines
- Extending straight lines using multiple chalk line snaps
Remember to double-check your measurements and always work from your established control points outward.
A plumb bob's accuracy depends on calm conditions, so consider working early in the morning when there's less wind.
Want to guarantee perfect accuracy? Take multiple measurements from different reference points!
Common Errors in Point Location and How to Avoid Them
Many construction professionals find themselves making preventable mistakes when locating points on their job sites, leading to costly rework and delays. The most common point misalignment causes include using worn measuring tapes, failing to account for slope variations, and rushing through measurements without double-checking.
To guarantee measurement error prevention, you'll want to establish clear reference points and maintain proper tension on your measuring tape.
Don't forget to account for temperature variations, which can affect steel tapes by up to 1/8 inch per 100 feet! Always verify your measurements from multiple directions, and remember to calibrate your equipment regularly.
Have you documented your point locations properly? Taking detailed notes and photos of your reference points will save you countless headaches later.
When in doubt, take the extra time to verify – it's always cheaper than fixing mistakes!
Checking and Verifying Point Accuracy
Three essential steps form the foundation of accurate point verification on any construction site. First, you'll need to implement reliable point validation methods through multiple measurements, and then compare those results against your original coordinates.
Accurate construction site verification demands multiple measurements and thorough comparison against base coordinates, forming a reliable validation framework.
When you've got your measurements, it's time to apply proven accuracy measurement techniques.
Here's your vital verification checklist:
- Measure each point from at least two known reference points
- Cross-check your measurements using different tools (total station, GPS, tape measure)
- Document all readings in your site log, including weather conditions
- Verify elevations separately from horizontal measurements
Remember to double-check your work when conditions change, like after heavy rain or equipment vibrations.
You'll want to maintain regular verification schedules throughout your project – isn't it better to catch errors early?
Documentation and Record Keeping Best Practices
Proper documentation stands as the backbone of successful construction site management, and you'll need a robust system to track your point locations. Start by creating detailed field notes that include coordinates, distances, and reference points for each location you've marked.
Your recording techniques should combine digital and physical documentation methods, including photos with timestamp data.
Keep a dedicated construction logbook where you'll note weather conditions, equipment used, and any challenges encountered during point location work. You're building a valuable record that'll help resolve future disputes and guide other contractors on the site.
Don't forget to back up your digital files daily and store physical documents in a weatherproof container. Remember, your documentation is only as good as your organization system – how will you structure yours to guarantee nothing falls through the cracks?
Safety Considerations During Site Layout
While setting up survey points and construction markers might seem straightforward, safety should always be your top priority during site layout work.
Before you start measuring and marking, take time to assess potential site hazards and make sure you've got proper personal protective equipment ready to go.
- Wear high-visibility clothing when working near roads or heavy equipment
- Use steel-toed boots to protect your feet from stakes and survey equipment
- Keep a first aid kit nearby, especially when working in remote areas
- Bring plenty of water and sun protection for outdoor layout work
